Discover The Plug-In That Gives Autodesk Civil 3D Design Superpowers
This 3 minute overview of Corridor EZ for Civil 3D will change your view of road design forever!
Corridor EZ Seamlessly Integrates With
Corridor EZ adds Artificial Intelligence to Civil 3D, allowing designers to work smarter and faster using their existing technical resources by increasing productivity and reducing the need to hire additional specialized staff.
- Corridor EZ Adds The Features Missing From Civil 3D For Uncompromised Design
- Corridor EZ Speeds Up Road And Corridor Design By Up To 20X
“Corridor EZ will revolutionize the method of designing subdivisions in a fraction of the time.”
Chuck Litchfield, CAD Manager, AKS Engineering & Forestry“I was able to design three different layout options in a fraction of the time it had taken me to create just one option.”
Russ Nicloy, Civil Solutions Specialist, MACER TechnologiesCivil 3D with Corridor EZ
Civil 3D without Corridor EZ
Speed comparison results of a typical subdivision road design performed by an independent CAD testing provider.
Corridor EZ for Civil 3D empowers subdivision road network design with intuitive features for road layout, profile generation, and intersection design, ensuring a streamlined workflow.
Corridor EZ for Civil 3D streamlines road reconstruction design projects, providing tools for precise design, data analysis, accurate quantity calculations, and visualization of the final outcome.
Key Features
Smarter Subdivision Road Design, Powered By AI
AI for subdivision design reduces the time taken to layout a subdivision road network from hours or days to just minutes. This feature deduces your design intent based on how you name your alignments and learns as you make corrections.

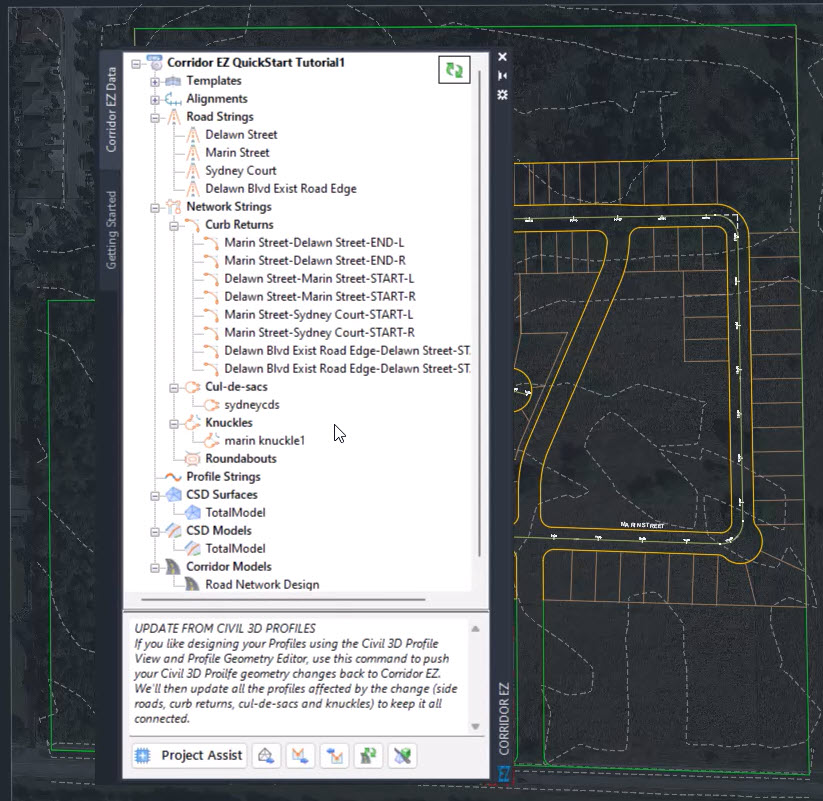

Intuitive Toolspace
The Corridor EZ Toolspace is intuitive and simple to use, providing a one-stop-shop for you to create, edit and manage all your design objects. Select any object, or object collection, and right click to obtain a contextual menu of commands available for that object. No more hunting through menus or ribbons to get to the command or object you want!

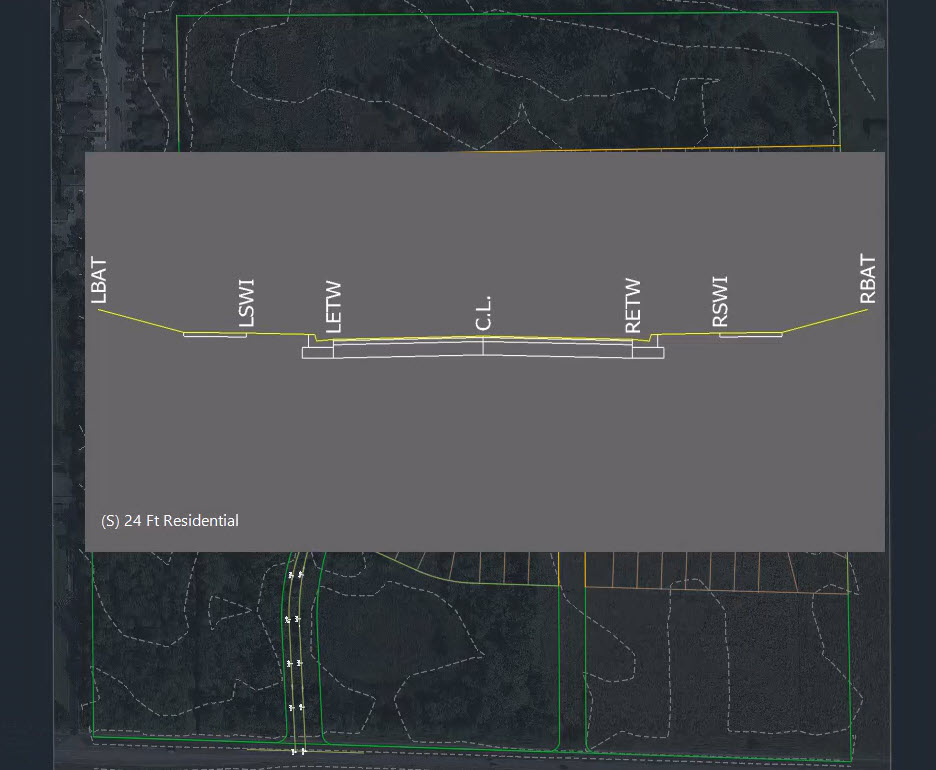

Templates Simplify Assemblies
Corridor EZ provides a spreadsheet-like template manager to define your road, curb, sidewalks, pond elements and related grading polylines. Templates replace the need to build complex assemblies and can be easily customized to meet specific project needs. When your design is complete and you are ready to create a corridor – Corridor EZ will create the required assemblies for you.
Intelligent Road Network Design
Corridor EZ delivers intelligent, AI driven creation of your entire road network via ‘Project Assist’. Once your surface and alignments are created, you can assign your templates and ‘Project Assist’ generates the design for an entire subdivision in a single operation including all curb returns, widenings and cul-de-sacs. All these elements are tied together so changing the vertical design of one road updates all of the connected profiles

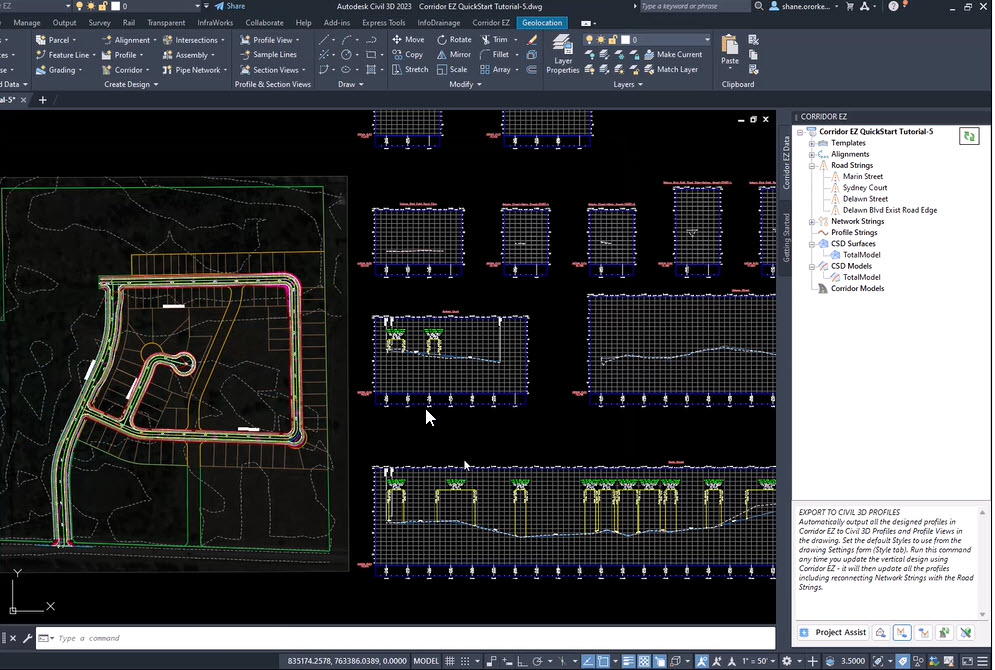

Leverage The Civil 3D Profile
Push your designs out to Civil 3D Profiles, complete with Profile Views, with a single mouse click. Edit your Civil 3D profiles and read back to the design to update all your curb returns and cul-de-sacs. As well, you can open multiple interactive design windows to edit your profile designs and view your cross sections, complete with plan tracking and dynamic updating as you change your design. There is no need to contend with split views and the hunt for profile views.

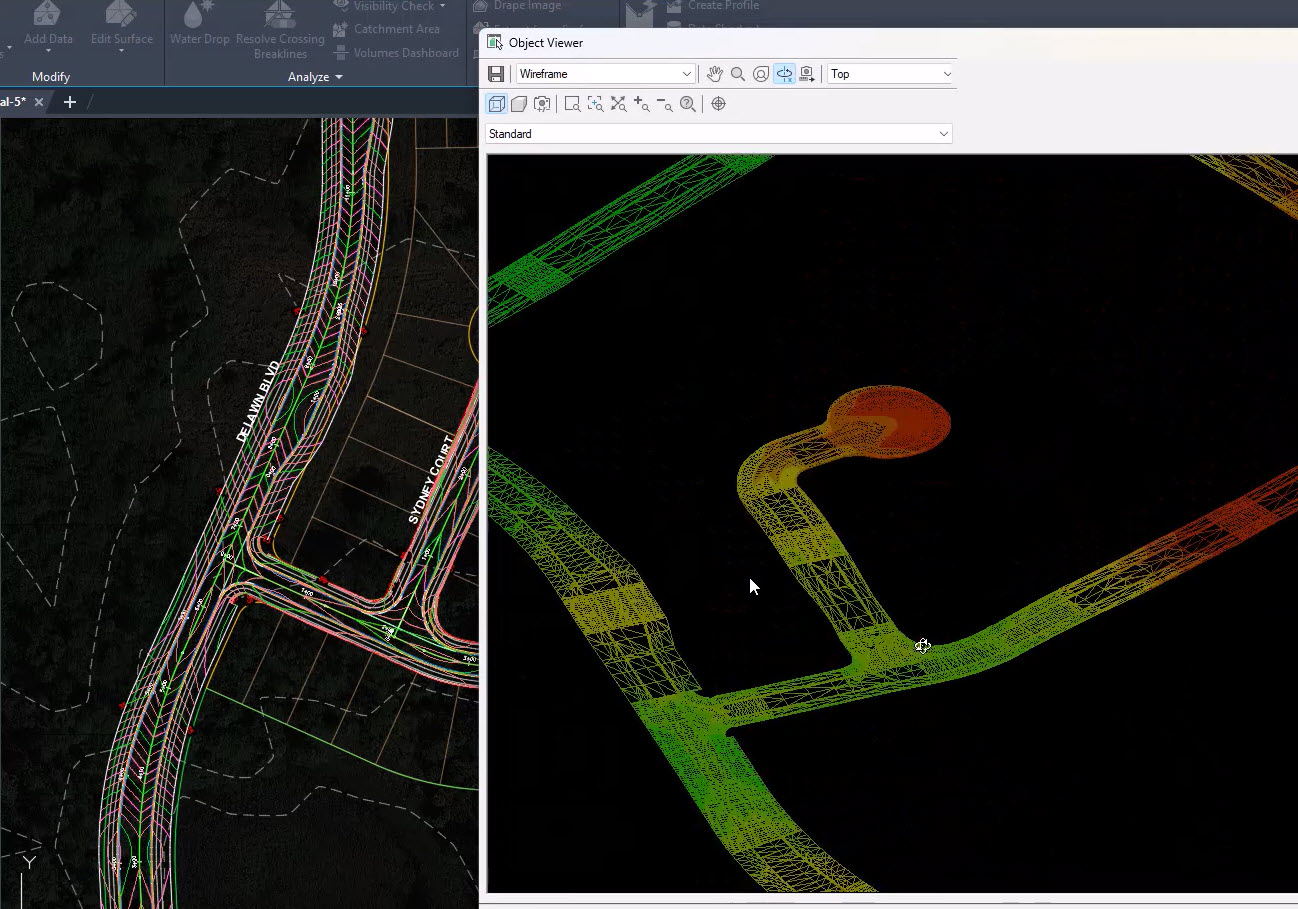

Surface Output
Once your design is complete, you can export your design to Civil 3D Surfaces at the click of a button, including all breaklines and boundaries. If you make a change in your design, re-run the export to update all the surface definitions, maintaining all your surface labels surface analysis and applied surface style.
Real Time Interactive Visualization
The Corridor EZ ‘Model Viewer’ assists your design process with real time rendering and visualization. It has a number of powerful analysis tools including line of sight analysis and reporting, automated line marking which can be exported to your CAD drawing.
Multi Baseline Corridor
At the click of a mouse, create a multi base line Corridor – including all assemblies, targets, regions and overrides. Need to make a change – another road or knuckle? No problems – simply sync your Corridor.
